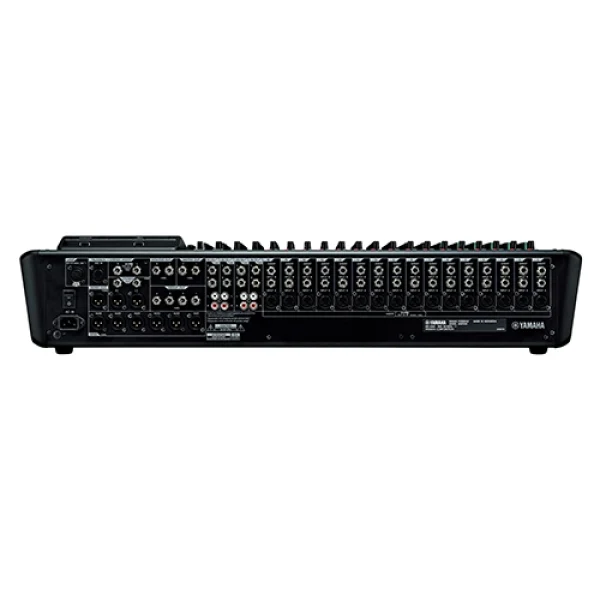

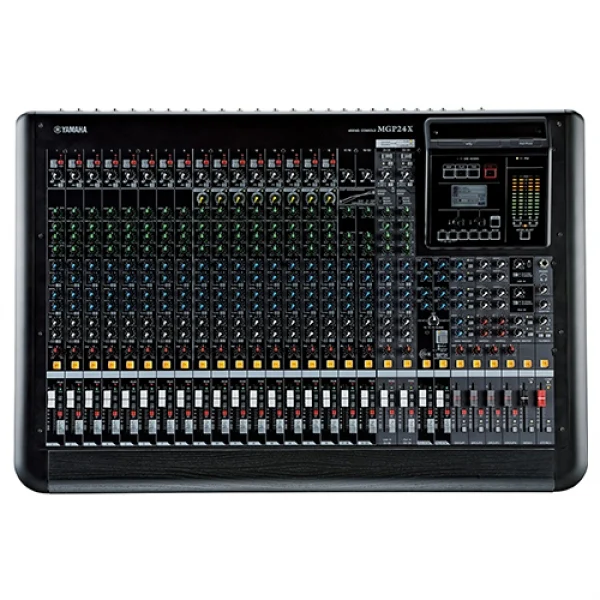

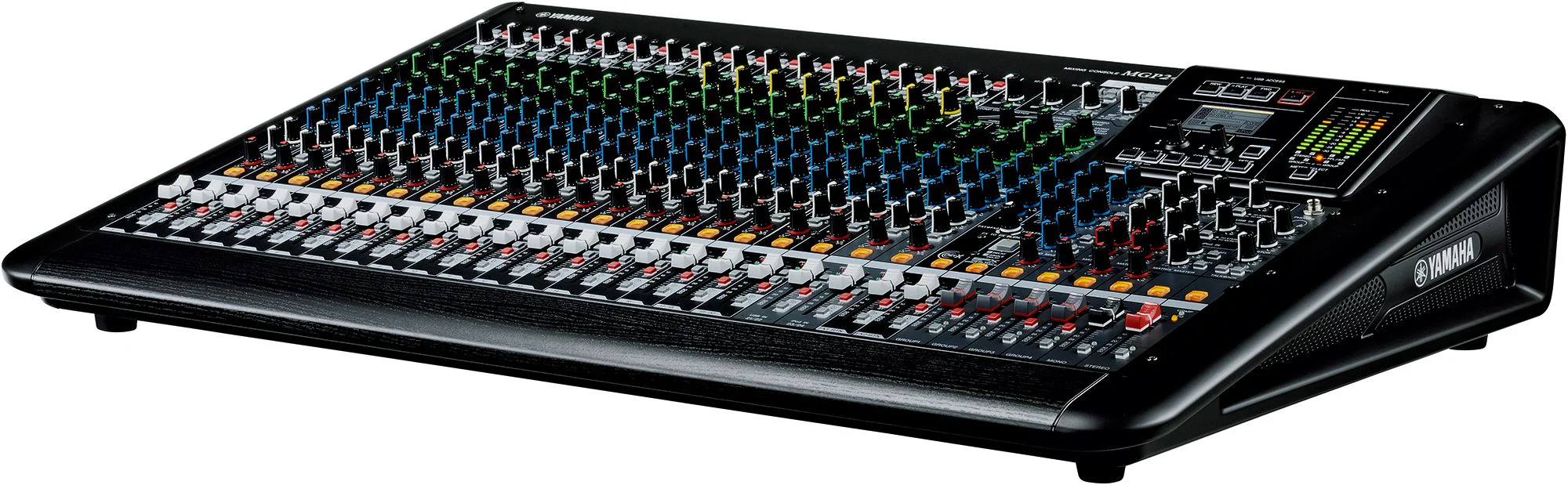

Yamaha MGP24X Mixing Console

• 24-Channel Premium Mixing Console
• 16 Mic Inputs with 48V Phantom Power and HPF per Channel
• 24 Line Inputs (16 mono and 4 stereo)
• 6 AUX Sends + 2 FX Sends
• 4 GROUP Buses + ST Bus
• 2 Matrix out
• 1 Mono out

Outline

• Mixing channels: 24 Line Inputs (16 mono and 4 stereo)
• GROUP: 4 GROUP Buses + ST Bus
• AUX: 6 AUX Sends + 2 FX Sends
• MATRIX: 1 Matrix out
• On-board processors: FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)

I/O

• Mic inputs: MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
• Phantom power: 48V phantom power per channel
• Line inputs: LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo
• Digital I/O: USB Device, iPod / iPhone

Total harmonic distortion: 0.02% (20Hz-20kHz@ +14dBu)

Frequency response: +0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz

Hum & noise level

• -128 dBu Equivalent Input Noise
• -94 dBu Residual Output Noise

Crosstalk: -74dB @ 1kHz

Power requirements: 100-240V 50Hz/60Hz

Power consumption: 86W max

Dimensions:

• W: 819mm (32.2″)
• H: 169mm (6.7″)
• D: 565mm (22.2″)
